Tail Lifts / Tail Gates
Discover Malaysia’s top-selling tail lifts, trusted by industry leaders like J&T and Shopee for their reliability. PHE tail lifts simplify truck and vehicle loading, proving essential in diverse industries for years.
Powermatics Hydraulics & Engineering
Product Overview
Our tail lifts are locally manufactured with ISO 9001 certification, ensuring high-quality standards. They are particularly popular in the warehousing, logistics, and retail sectors, enhancing operational efficiency. Additionally, they are widely used by government bodies and local council.
We offer a variety of tail lift designs and configurations, each manufactured to order to ensure precise customization according to your requirements. Our knowledgeable sales team is ready to provide tailored solutions for all your lifting needs.
Types of Tail Lifts / Tail Gates We Offer :
Powermatics has engineered a range of tail lifts to fulfil the distinct needs of different industrial sectors.

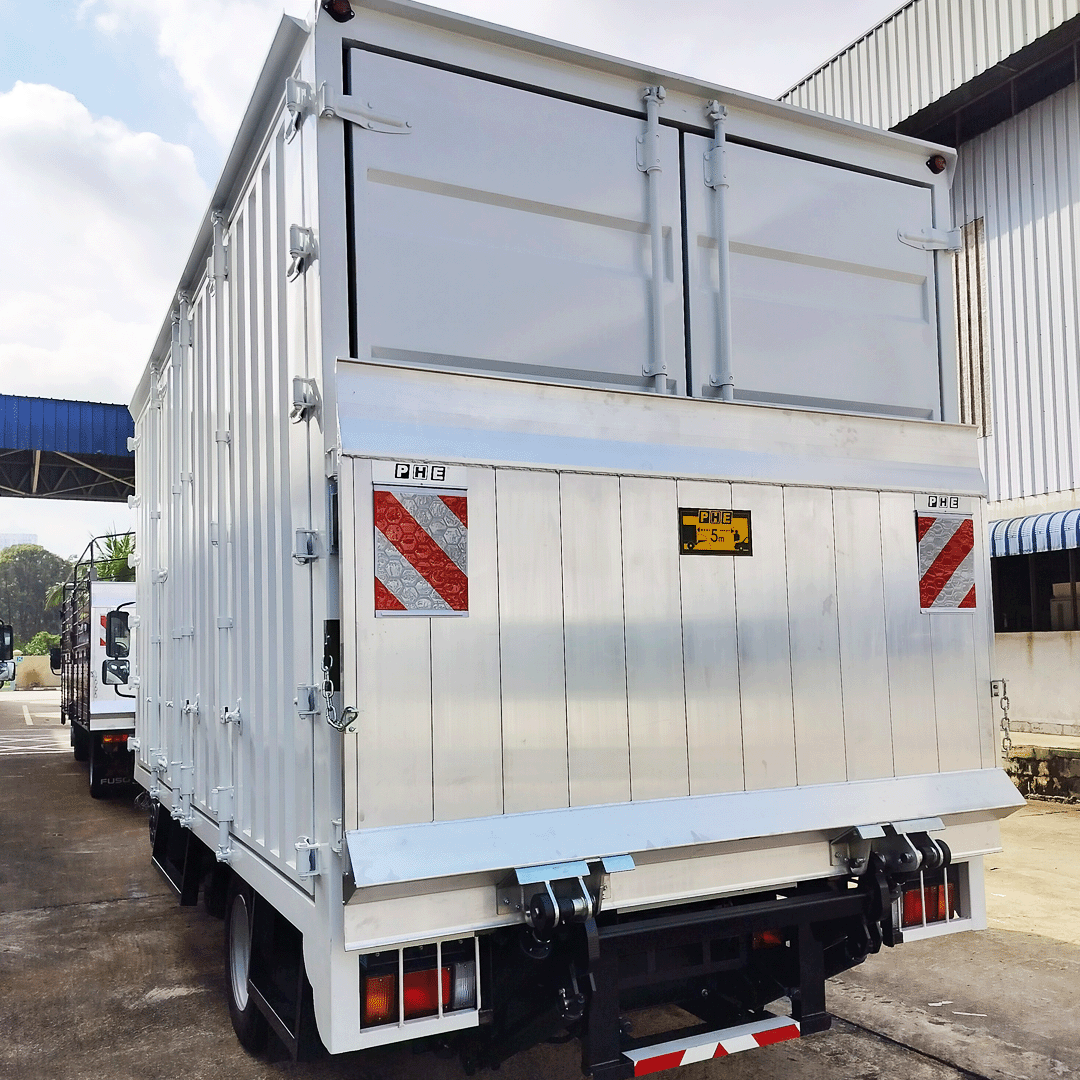

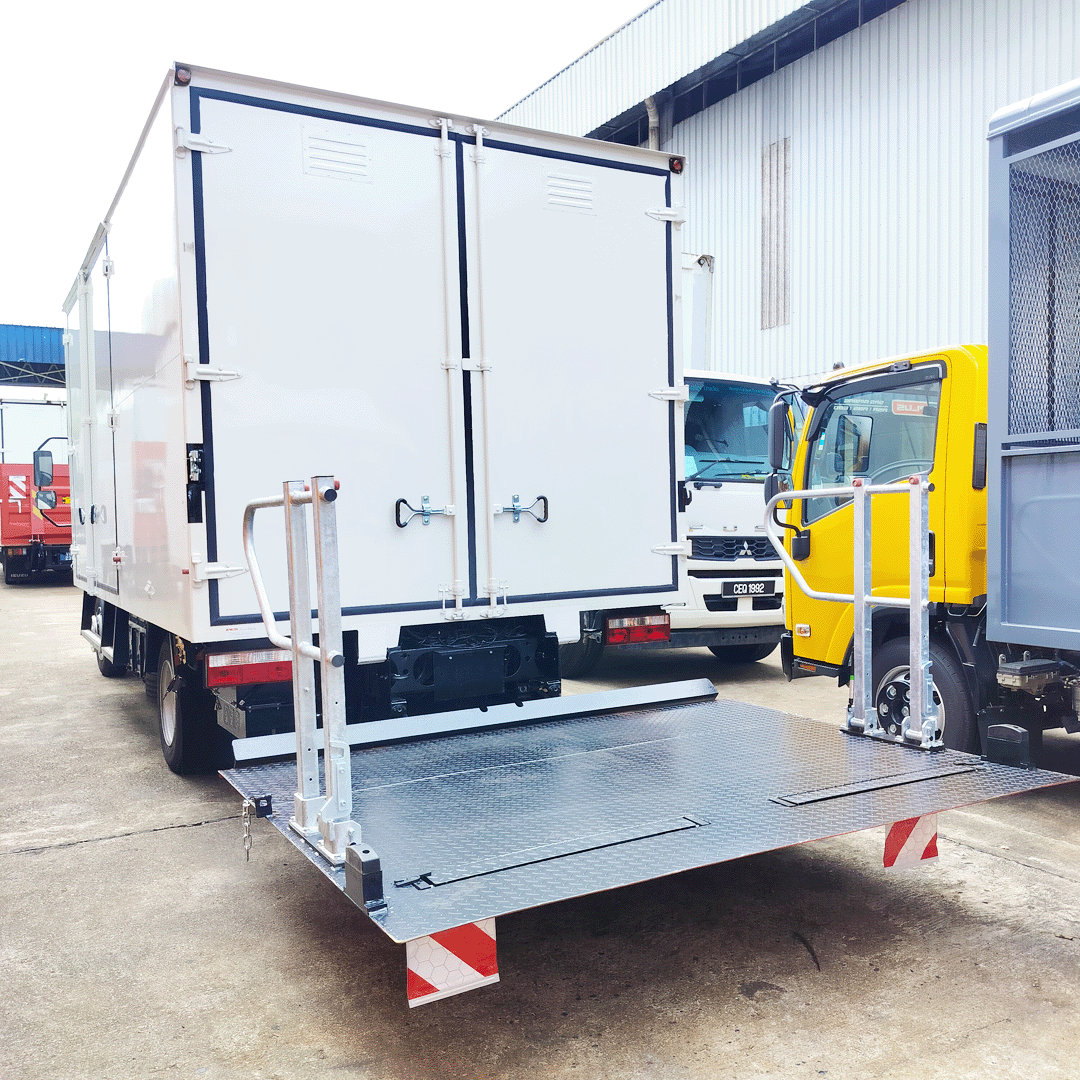

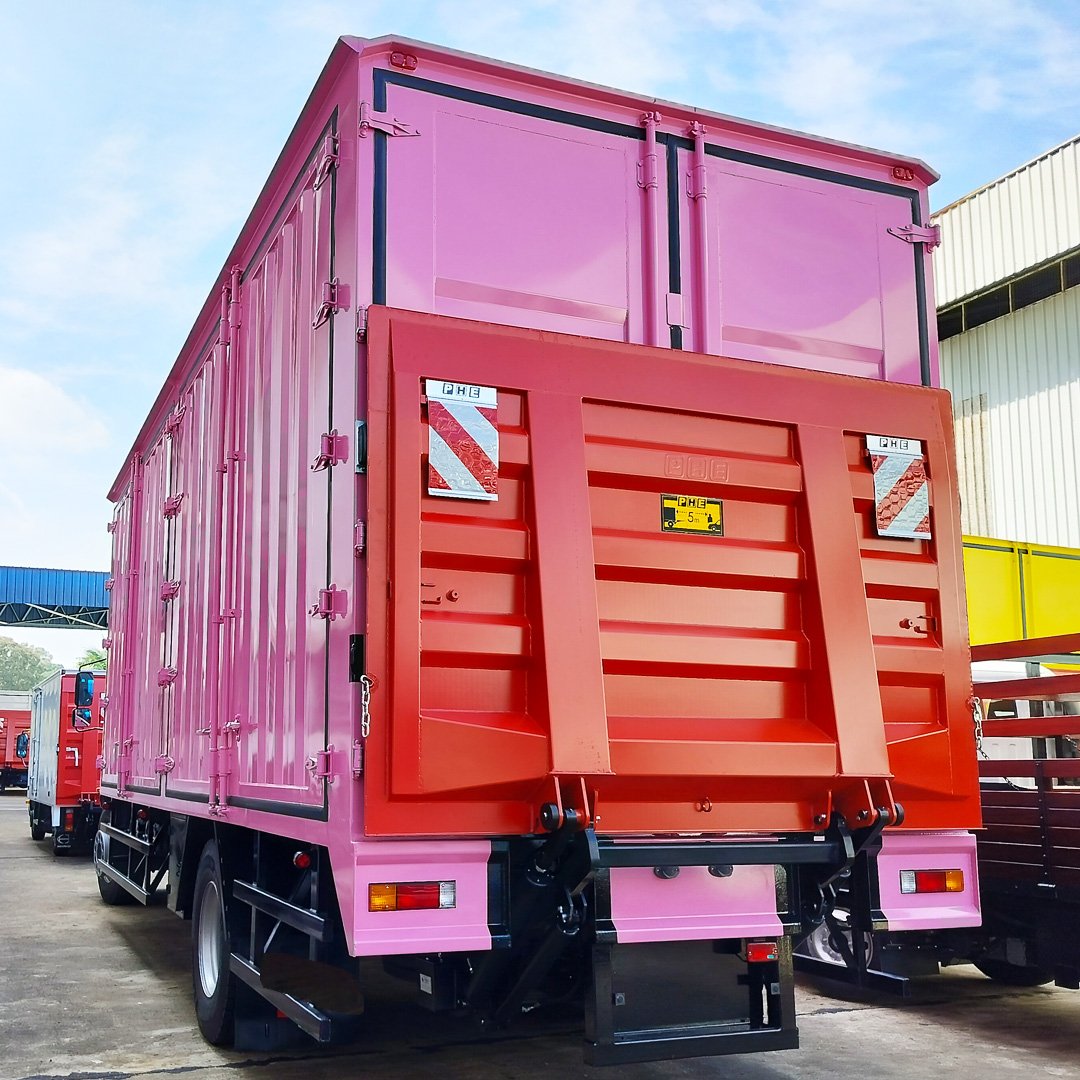

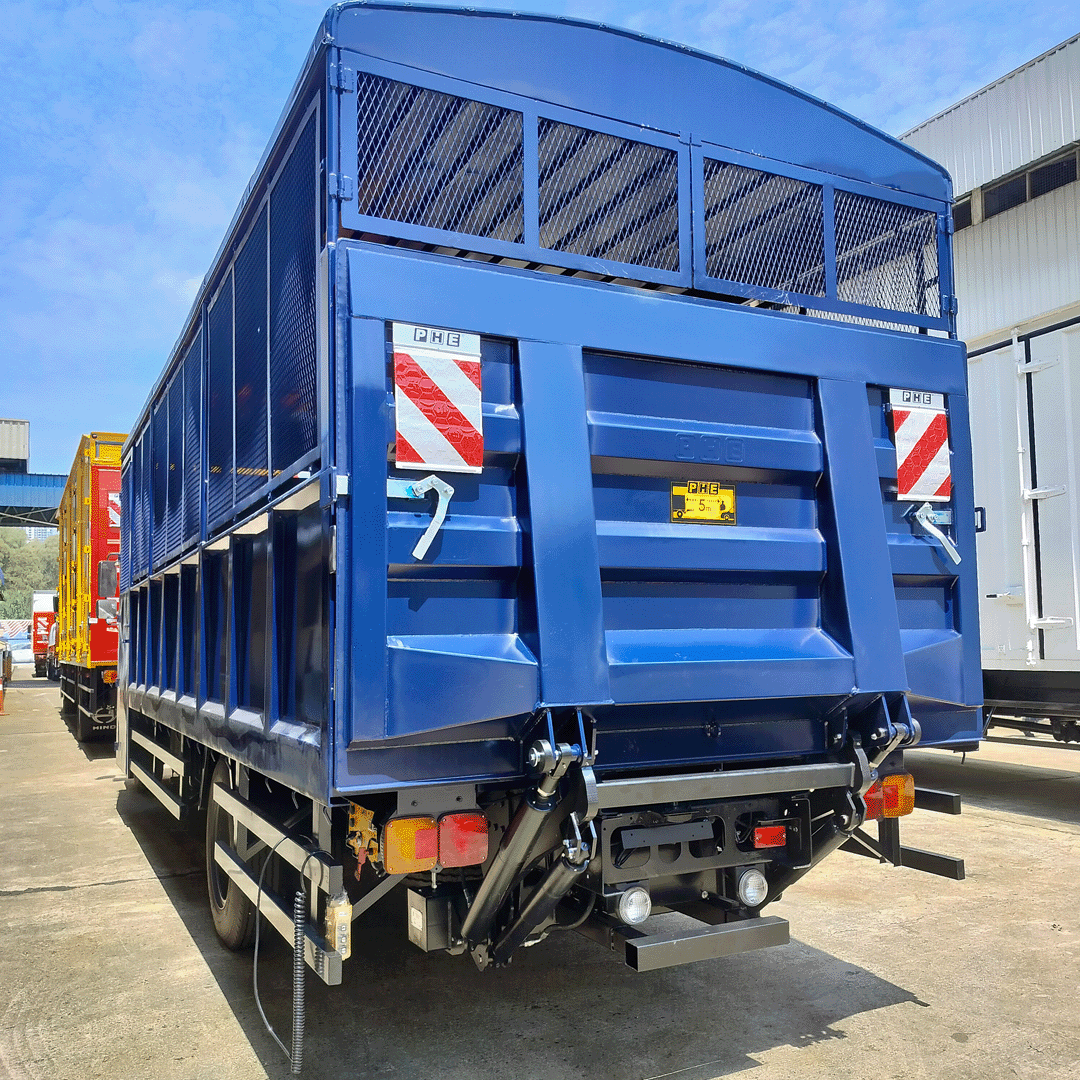

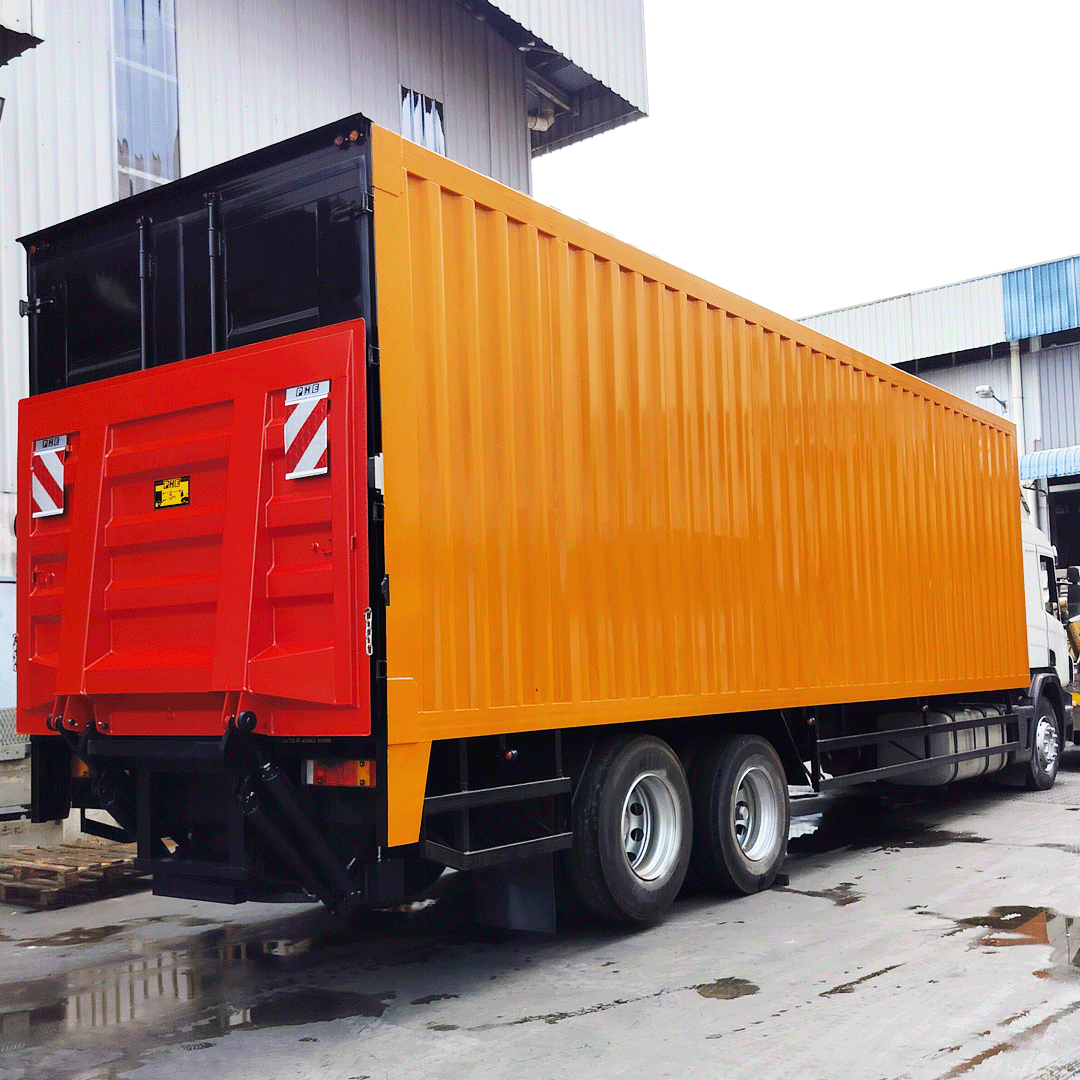

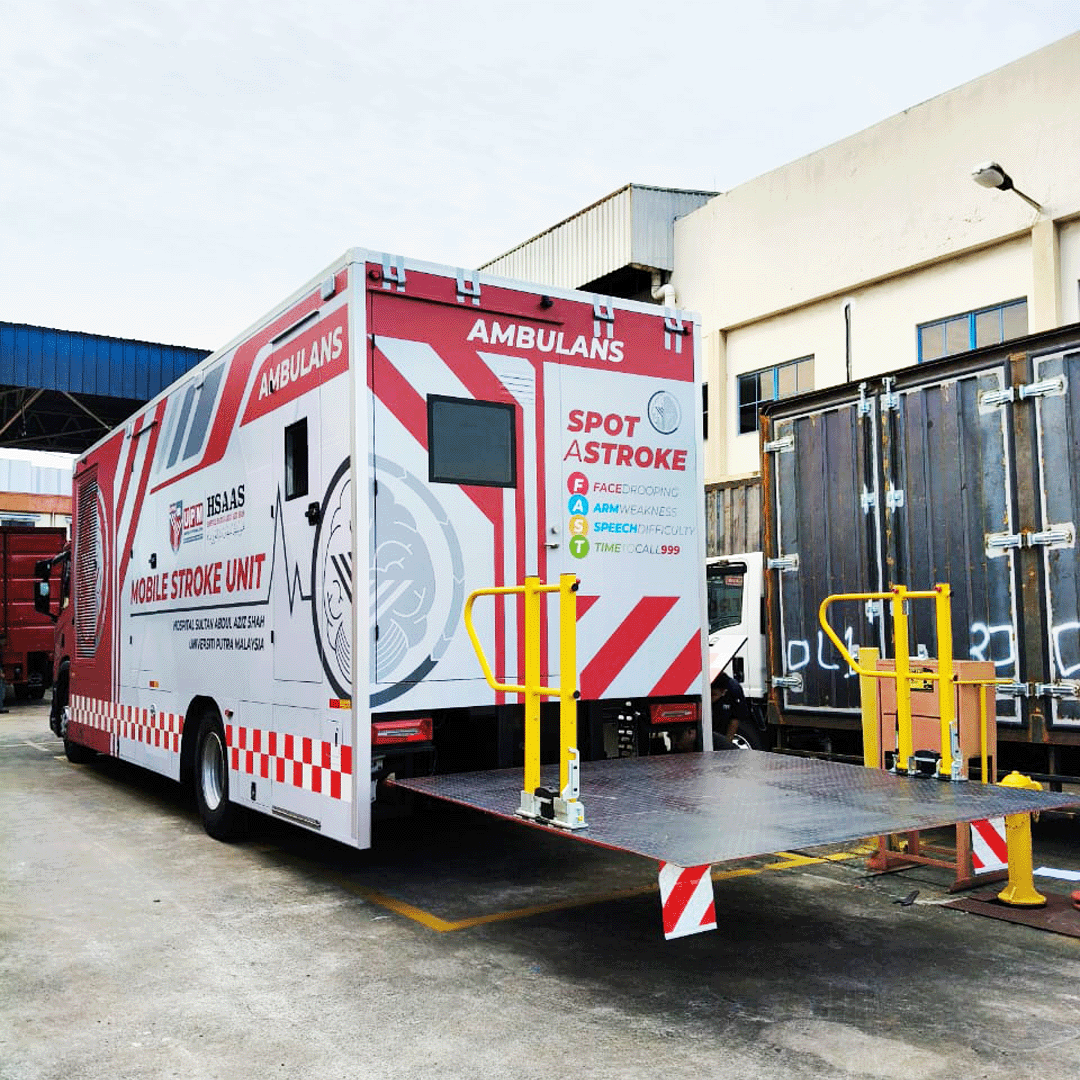

Cantilever lifts

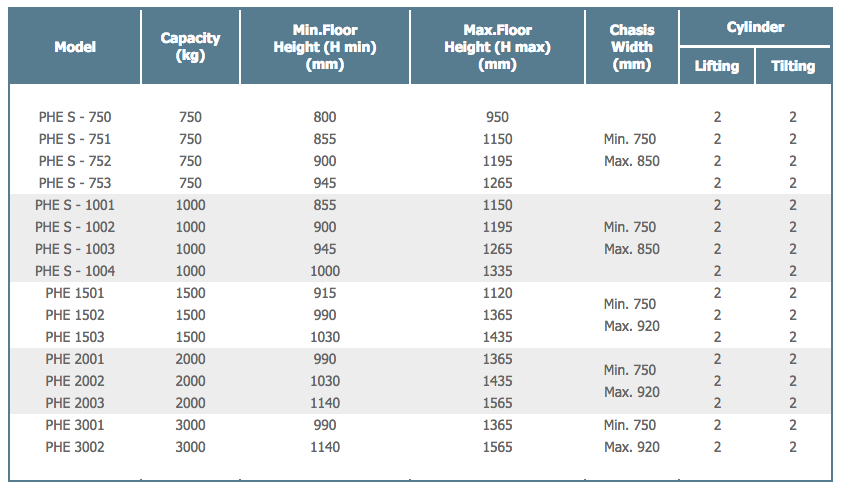

Our standard tail lifts are the most popular model due to its cost-effectiveness and simple operation. They operate effortlessly with four-cylinder stability with our unique Auto-Leveling System (Optional feature). Designed for low maintenance, our tail lifts have capacities ranging from 750kg to 3000kg and can be customized for higher loads and special designs. Available in both steel and alumininum platforms for versatility and durability.

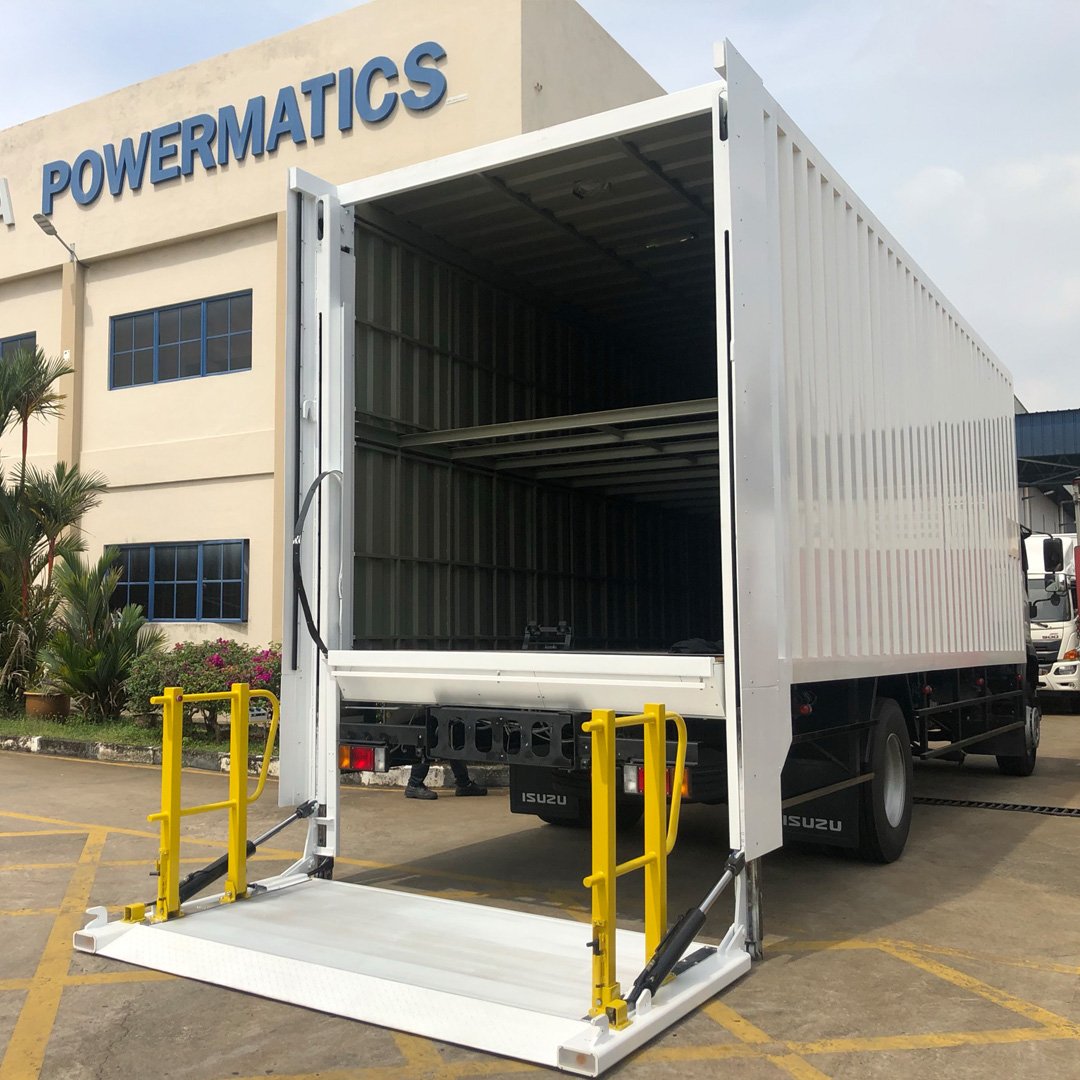

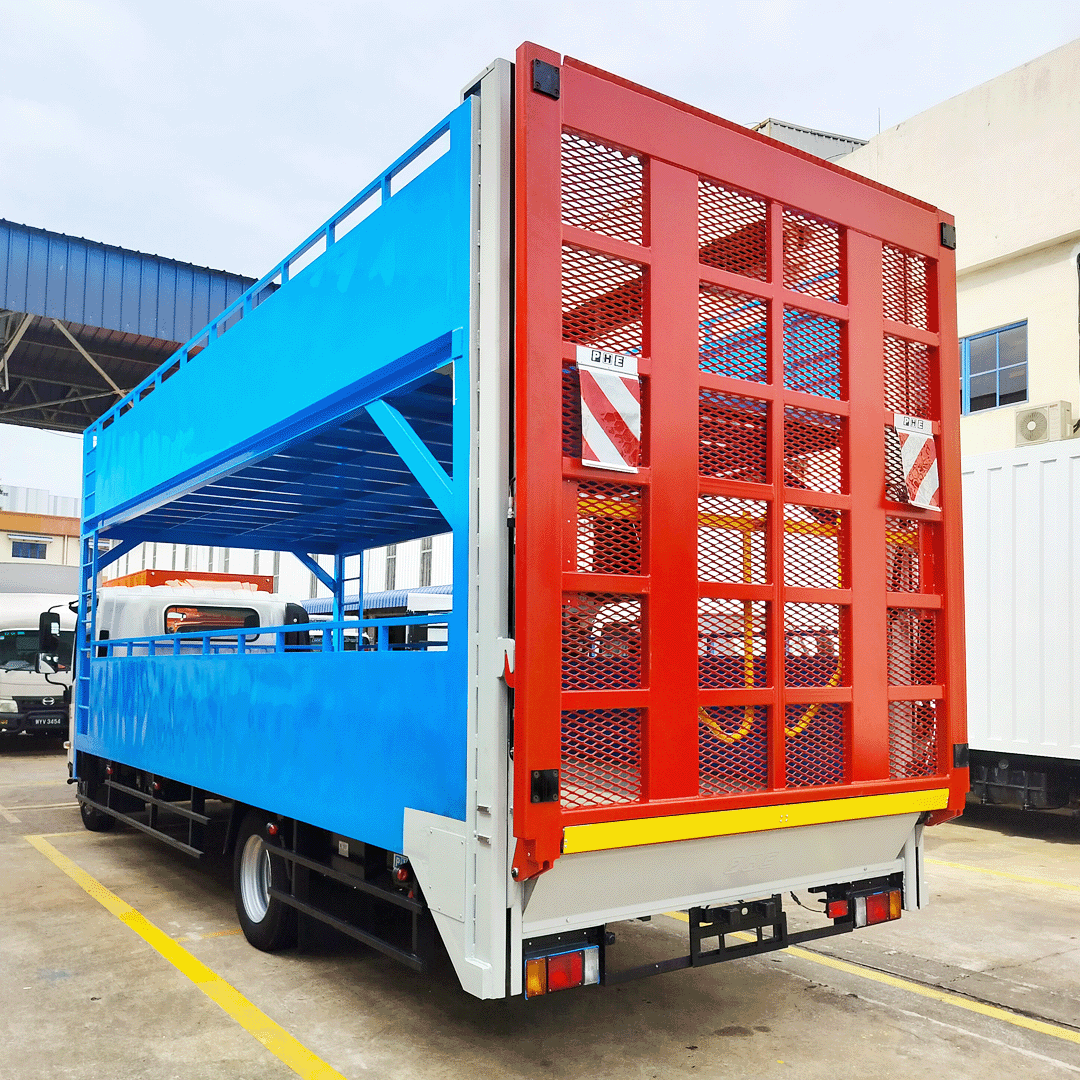

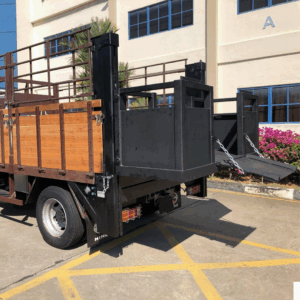

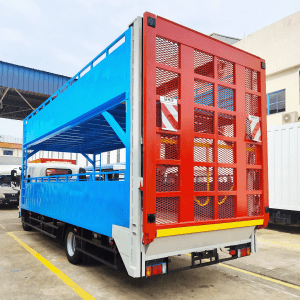

Column lifts
Mechanical column lifts, commonly known as “column lifts”, are highly versatile. They feature a platform that can be raised lowered on tracks at the rear of the vehicle, allowing for lifting across multiple levels. Column lifts extend to heights greater than the cargo bed, facilitating efficient loading and unloading operations.
Standard Features & Accessories

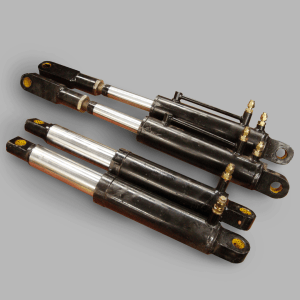

Durable Hydraulic Cylinders
- Comes with 4 cylinders for heavy-duty and stable operation.
- 2 single-acting lifting cylinders fitted with safety valves
- 2 single-acting tilting cylinders
- Serviceable to help reduce maintenance cost

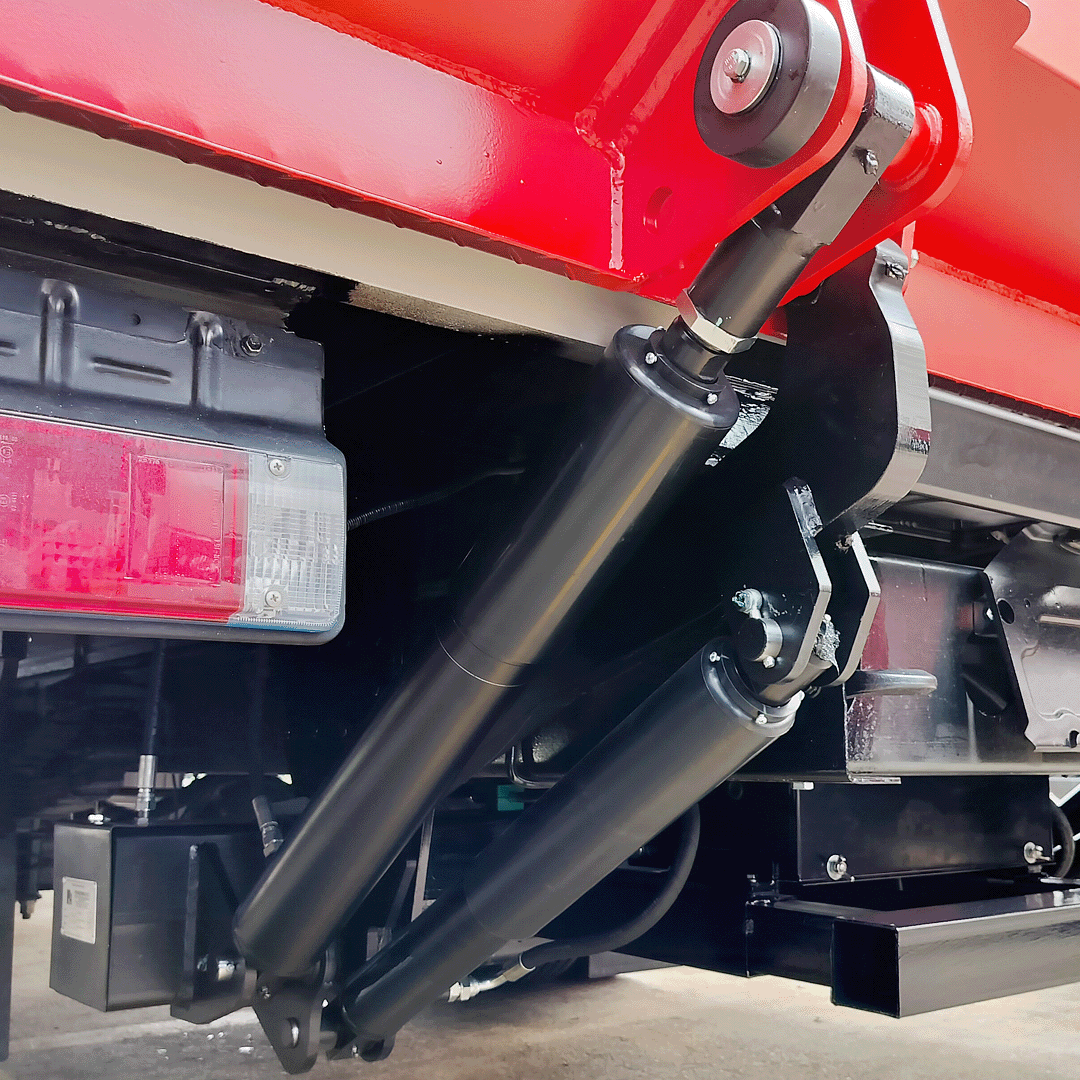

Cylinder Protection Cover
- Cylinders fitted with protection cover which prevents scratching on rod and reduce damage of seal

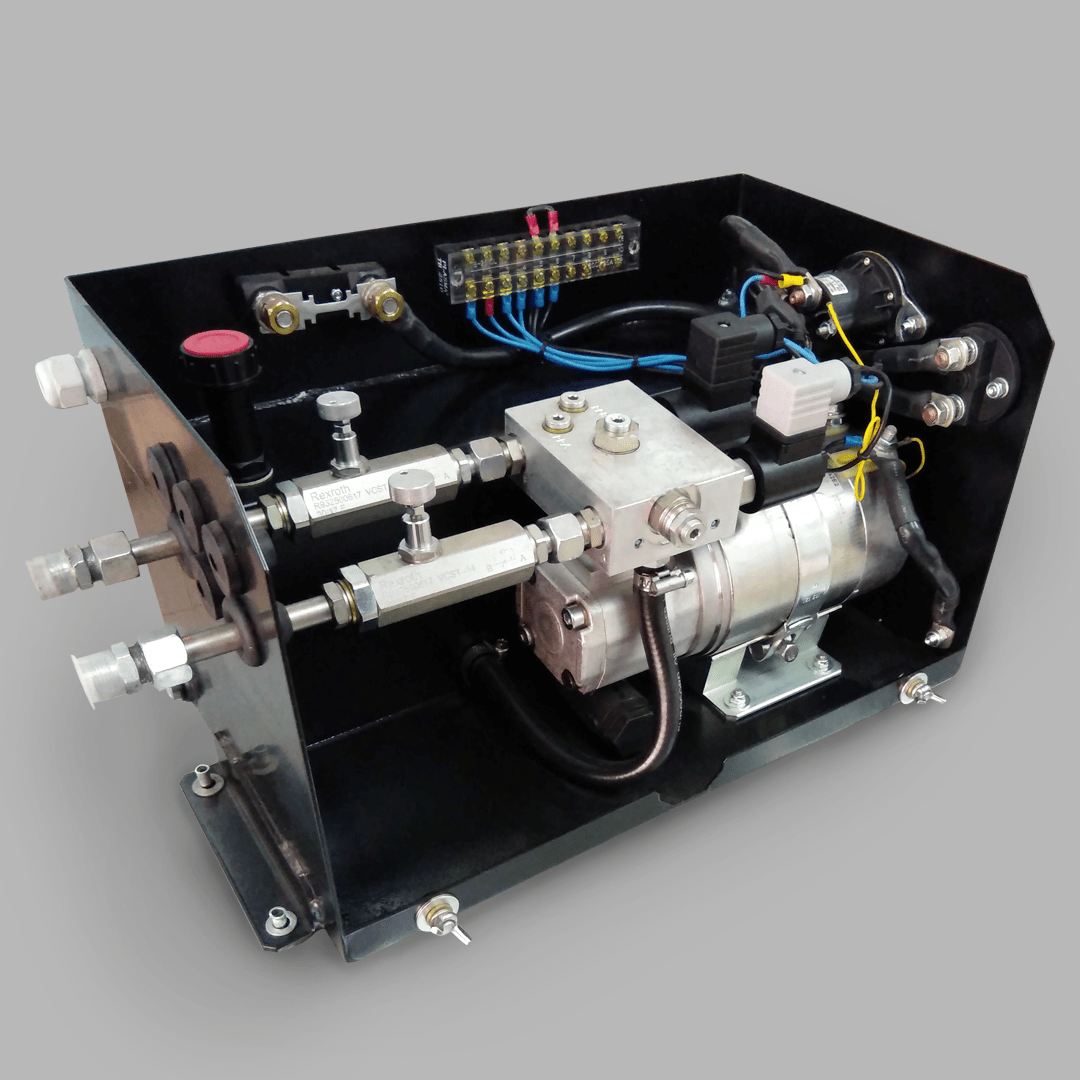

High Performance Powerpack
- Fully imported, comply with CE Standards
- Less weight and high performance
- Operates on either 12V or 24V power supply

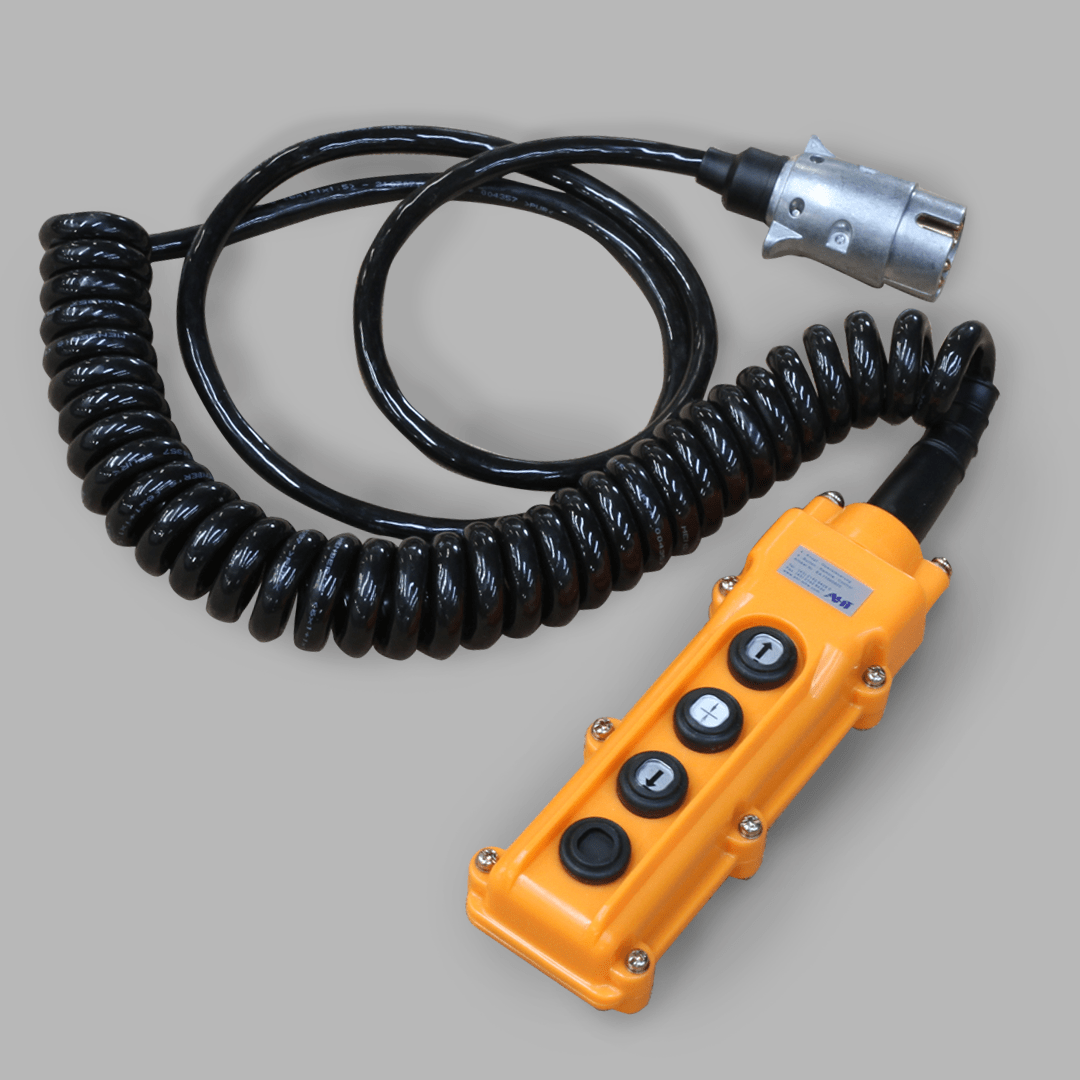

User Friendly Remote Controls
- Simple push button
- Cut-off switch with key
- Motor with thermal safety device

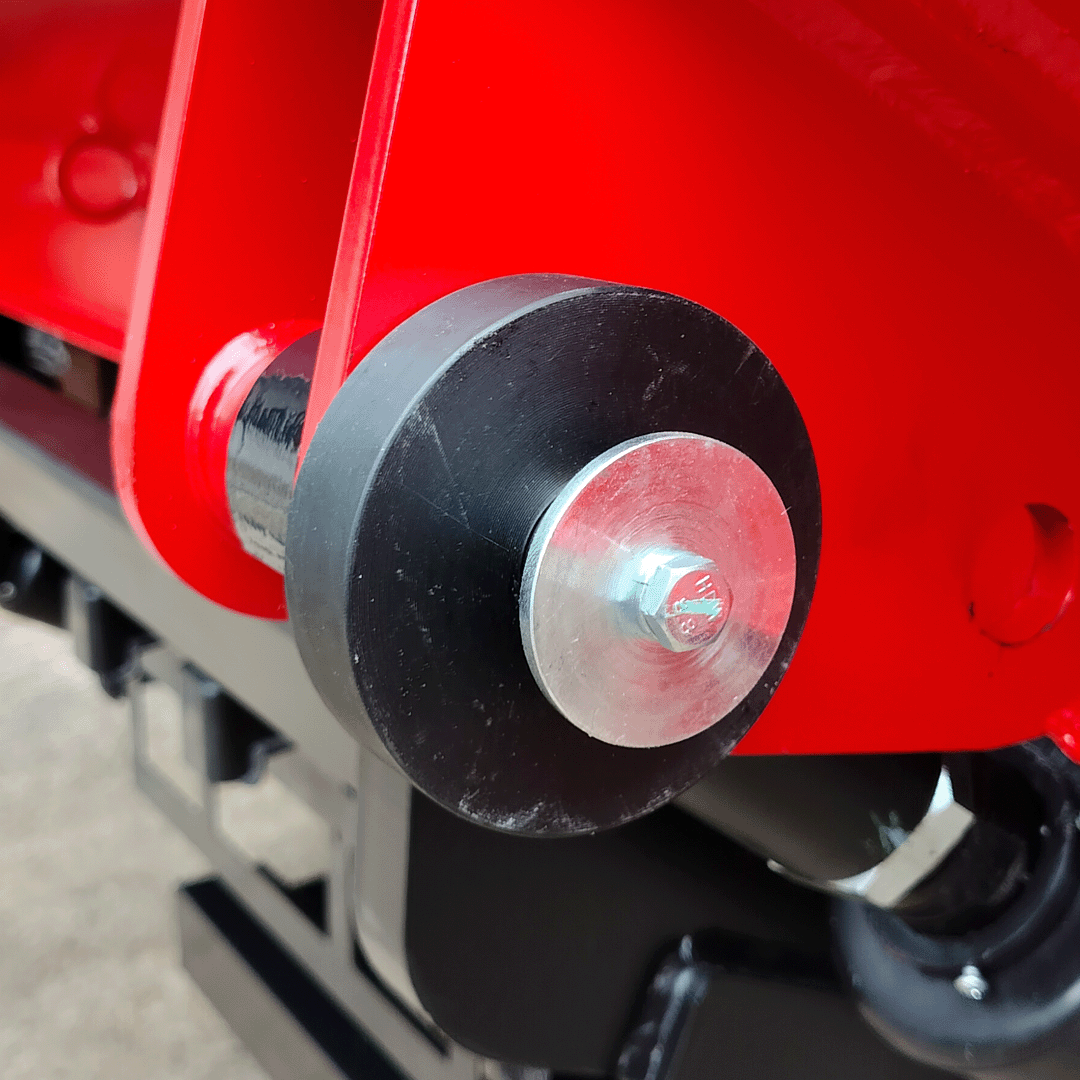

Heavy Duty Platform Rollers
- Protects the platform against wear and tear
- Protects the floor against damage

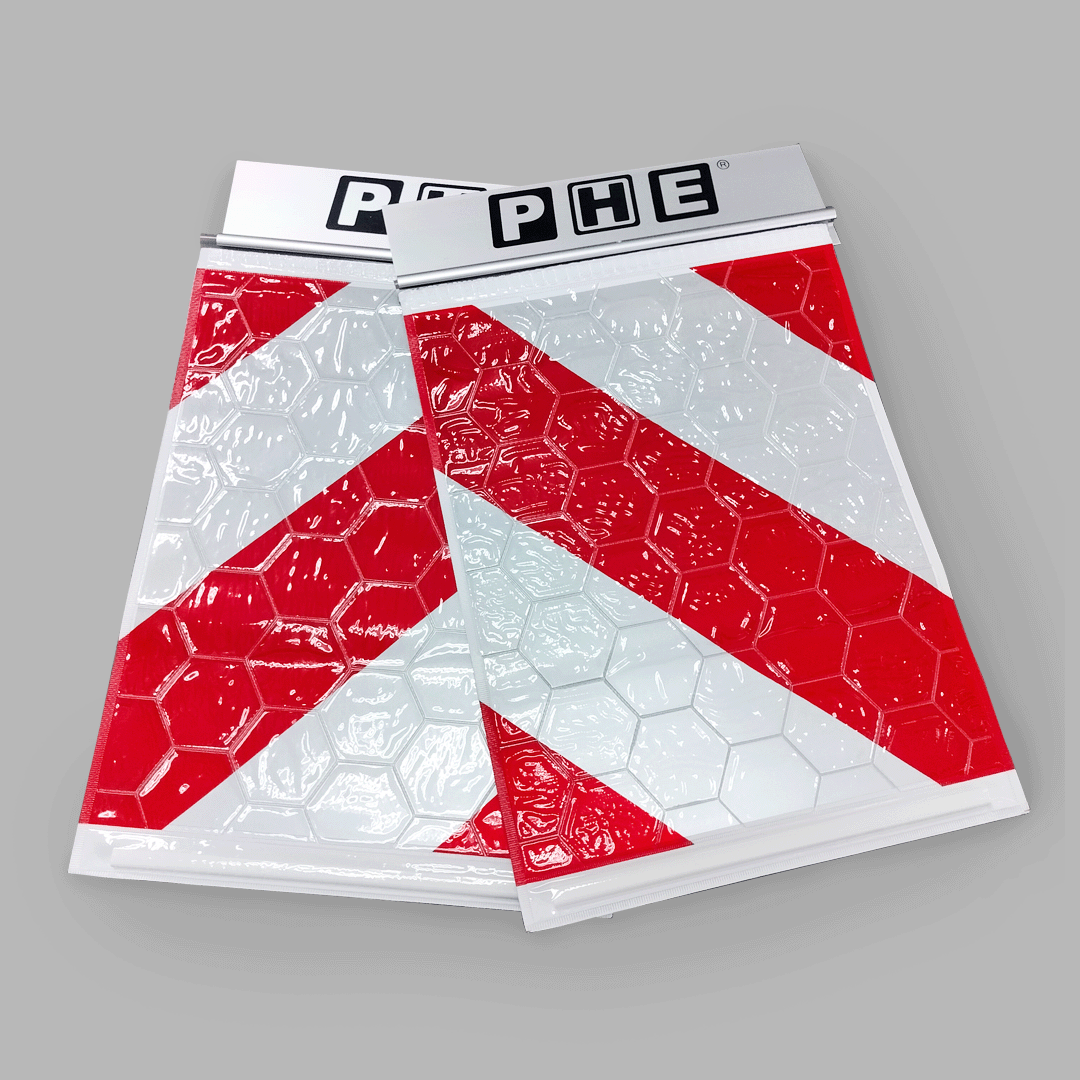

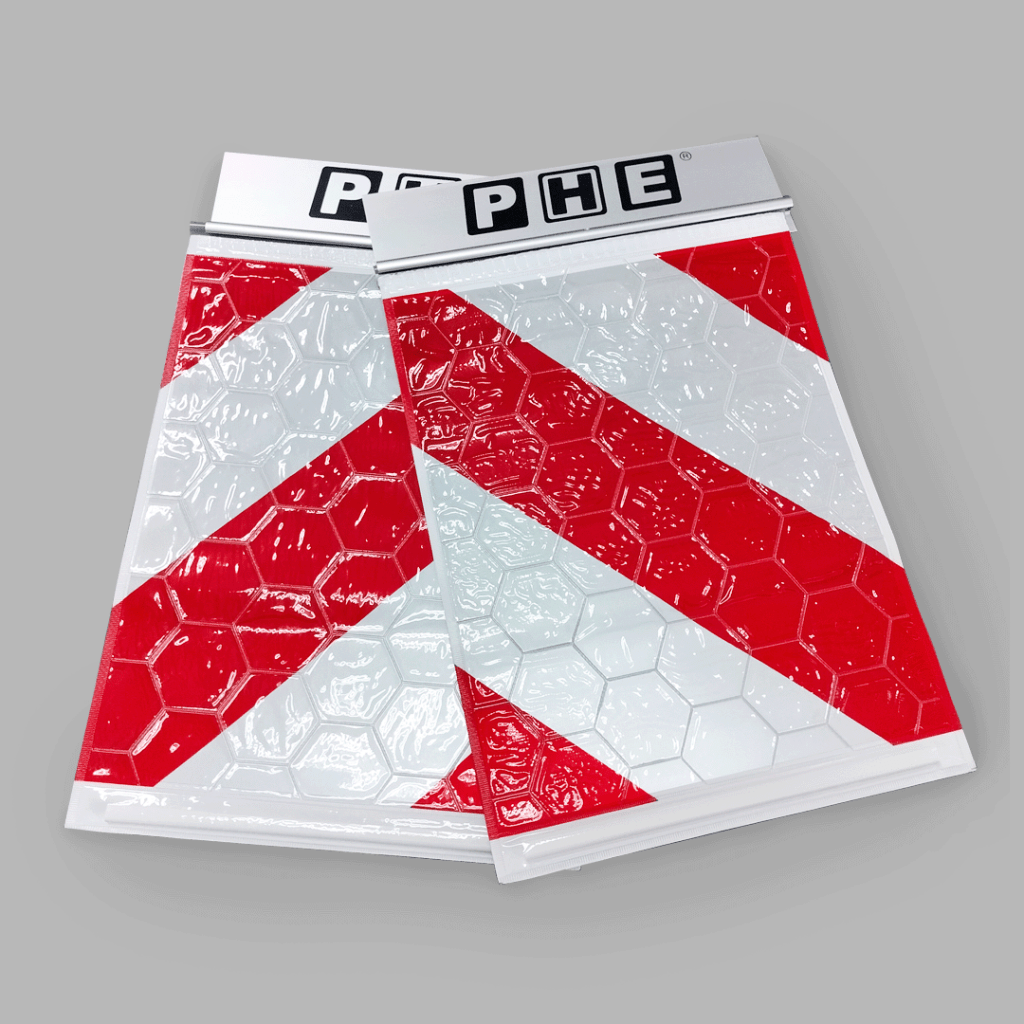

Safety Warning Flags
- Heavy duty UV protected PVC for maximum durability
- High-strength reflective strips for high visibility and maximum safety
Optional Features
Auto-Leveling
- Automatic platform tilting at ground level
- Platform orientation can be adjusted to suit the slope of the ground
Foot Switch
- Provides an optional hands free method to control the tail lift platform
- Requires both feet to initiate the movement and release of any control will stop the movement
- This safety features will prevent unintentional movement of platform

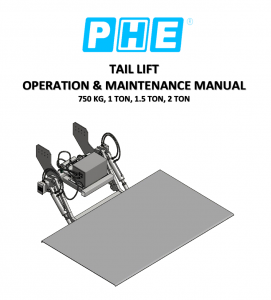

Operation Manual
