Welded Cylinder

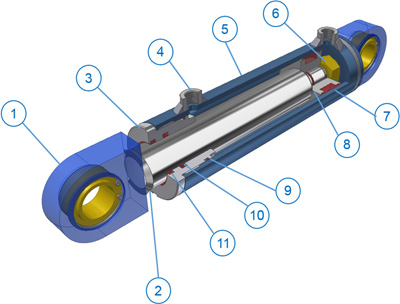

Technical Features

  1. Rod End Clevis – Rod end mounting style available to suit all application
  2. Piston Rod- Standard C45/C50. Medium carbon steel, hard chromium plated at least 20 µm thickness. Surface finish, Ra ≤ 0.2 µm (8 Rms); Diameter tolerance ISO f7. Yield stress is 340 to 517 N/mm2. Other piston-rod materials and surface treatment are available.
  3. Heavy Duty Head Gland– Machined from ductile iron for maximum bearing support and wear resistance. Connection Port – With standard threads.
  4. Connection Barrel- Heavy wall steel tubing honed or skived and roller burnished to assure minimum seal friction and wear. ø40mm – ø200mm: Skived and roller-burnished steel tube (to a surface finish of Ra ≤ 0.2 µm). Stress relief annealed after the last cold drawn process. Minimum yield stress is 520 N/mm2 > ø200mm: Honed steel tube to a surface finish of Ra ≤ 0.4 µm. Minimum yield stress is 355 N/mm2.
  5. Lock Nut – Self-locking piston nut.
  6. Piston Seal – High pressure piston seal with wear ring provides leak proof operation.
  7. Piston – Designed to assure leak proof and reduced bearing load. Material: ductile iron or steel
  8. Head Gland Seal – O-ring with back-up-ring provides positive sealing between gland and barrel.
  9. Rod Seal – Long life urethane rod seal prevent hydraulic oil leakage.
  10. Rod wiper - Double-lip rod wiper provides dirt protection and wipes rod clean on in-stroke.
